Advanced Bunker Drainage is Simpler with Bunker Dry.

How is Bunker Dry installed in existing bunkers?

  • Person standing next to a large dent or hole in the sand, with a small shovel nearby, on a golf course, likely working on a sand trap or bunker.

    1. Precise Excavation of the Lowest Point.

    We begin by excavating a targeted area at the absolute lowest point within the bunker’s sub-strata to ensure optimal water collection.

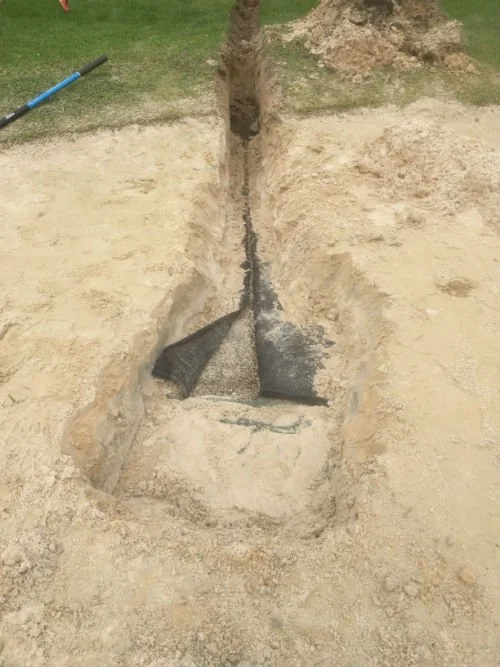

  • A trench with black waterproofing material and gravel, with a shovel nearby, indicating ongoing construction or landscaping work.

    2. Creating the Carrier Channel.

    This involves carefully excavating a narrow trench to precisely accommodate the carrier pipe, ensuring an optimal path for water flow from the Bunker Dry unit.

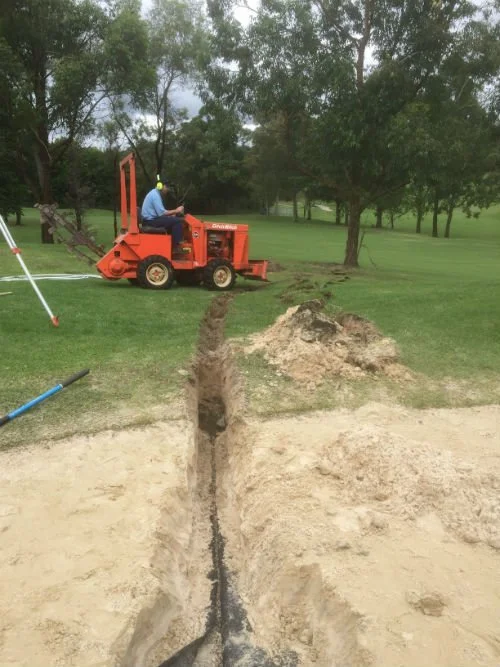

  • Construction worker operating a small orange machine on a grassy area, digging a trench in the ground.

    3. Establishing the Outflow Channel.

    We extend the excavation beyond the bunker perimeter, creating a clear and efficient trench to allow the carrier pipe to discharge water effectively, well below the bunker's base.

  • Close-up of a white plastic rake and a green and white plastic pipe in sandy ground.

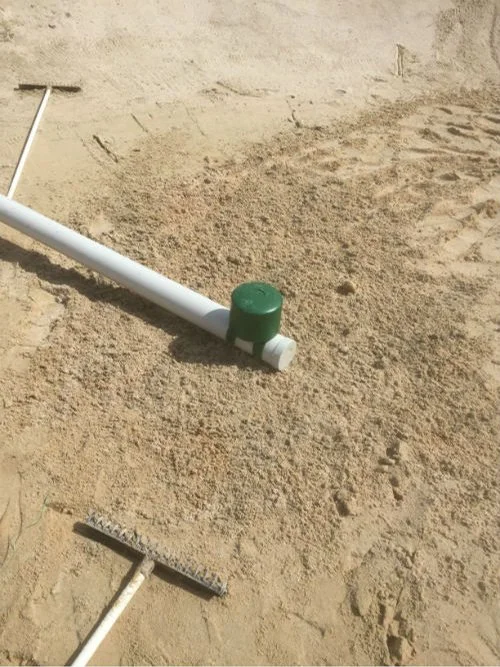

    4. Device Placement & Alignment.

    The Bunker Dry unit is carefully test-fitted into the excavated lowest point, ensuring perfect alignment and optimal drainage performance.

  • A white PVC pipe lying on sandy ground, with a small green container and a level tool nearby.

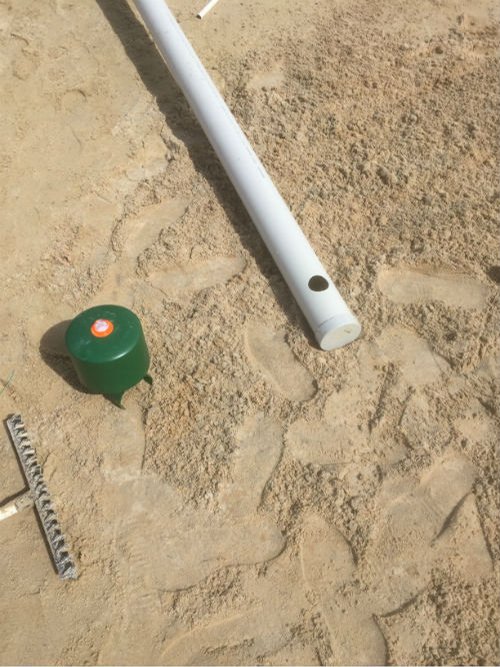

    5. Preparing the Carrier Pipe Connection.

    Description goes hereA precise Ø52mm hole is drilled into the Ø100mm PVC carrier pipe, creating the critical connection point for the Bunker Dry unit to ensure efficient water transfer

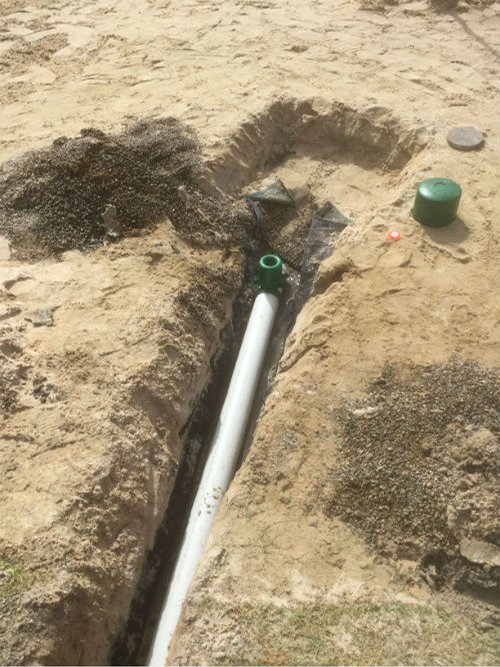

  • A trench in the ground with a white pipe and a green connection fitting, surrounded by sand and soil, with small tools nearby.

    6. Component Installation & Trench Integration.

    The primary weir component and carrier pipe are now securely installed into their prepared trenches, forming the core of the Bunker Dry drainage system

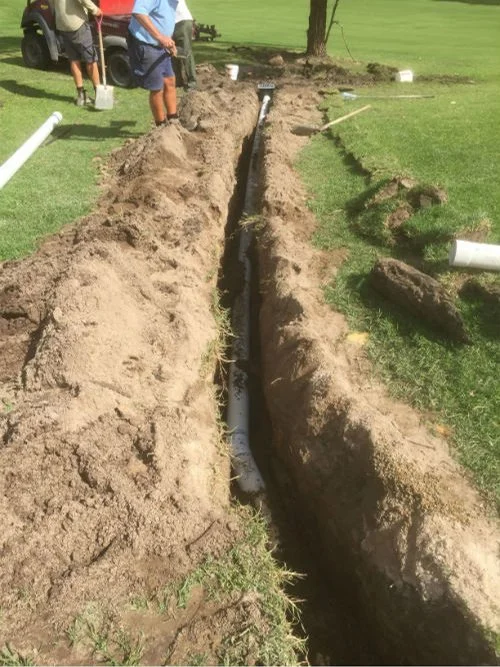

  • Workers installing underground pipes in a trench on a grassy area.

    7. Finalizing Pipe Integration & Backfill.

    The carrier pipe is now fully secured into its trench. Once this step is complete, the trench can be backfilled with soil to secure the installation.

Bunker revival – from damaged to dry and playable

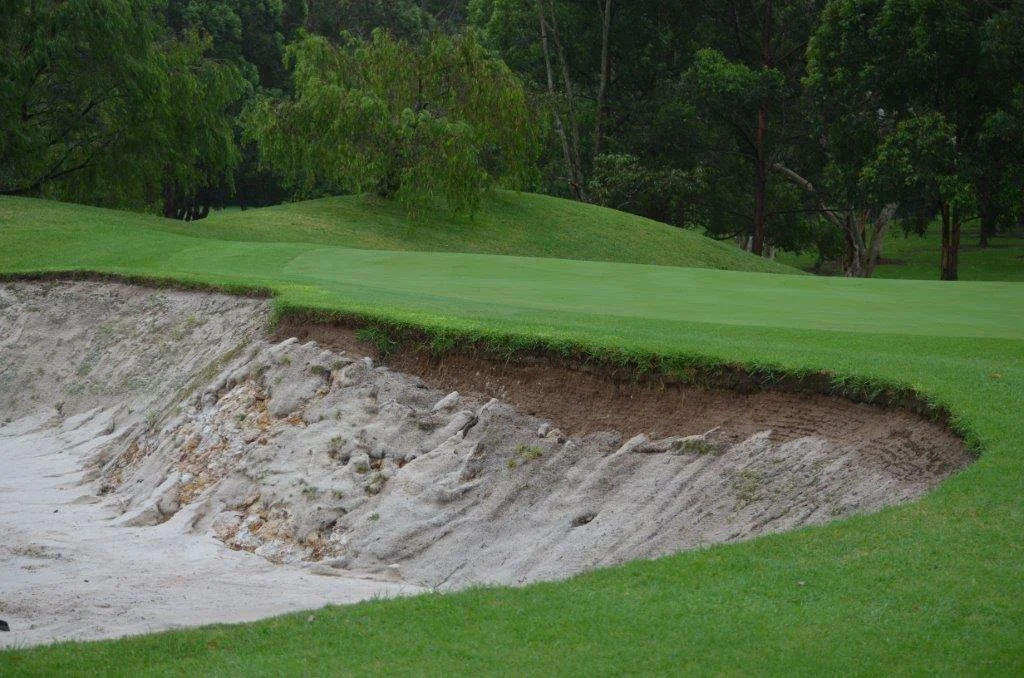

A cross-section of a sand bunker with eroded sides on a golf course, with lush green grass and trees in the background.

“We have successfully installed Bunker Dry to six bunkers at Asquith Golf Club. We no longer need to empty and repair them after heavy rain, saving so much time and resources. Bunker Dry is cheap and easy to install and I’m happy to recommend it” says Stuart Hall, Course Superintendent at Asquith Golf Club.

A golf course with a large sand bunker and green grass, surrounded by trees.

With Bunker Dry, your bunkers bounce back rapidly from storm damage to restored and playable.

This reliable solution provides unparalleled drainage, ensuring your hazards withstand challenging weather, reduce costly repairs, and maintain their pristine condition, ready for any round.

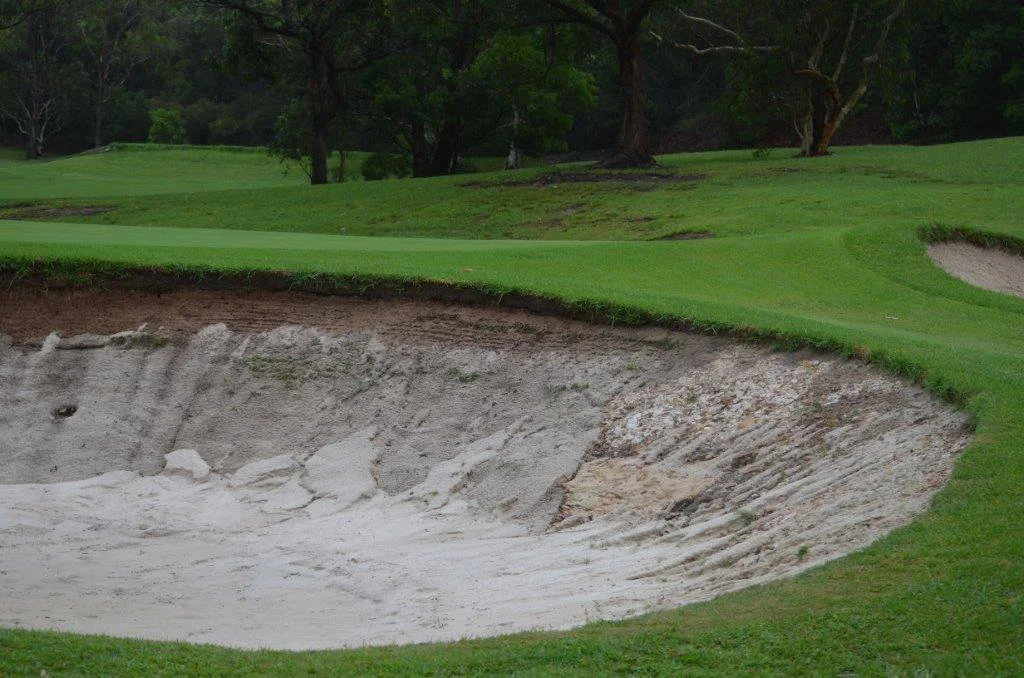

The 17th bunker at Asquith Golf Club suffered severe erosion from heavy rain, with sand stripped back to the rock base – a problem that went beyond simple waterlogging, leading to ongoing maintenance woes.

With Bunker Dry, this complex issue was resolved with remarkable speed. The bunker was not only returned to play immediately, but the system's ability to eliminate water buildup also inherently fixed the eroded edges, preventing future damage and ensuring a more stable, lower-maintenance hazard for years to come.

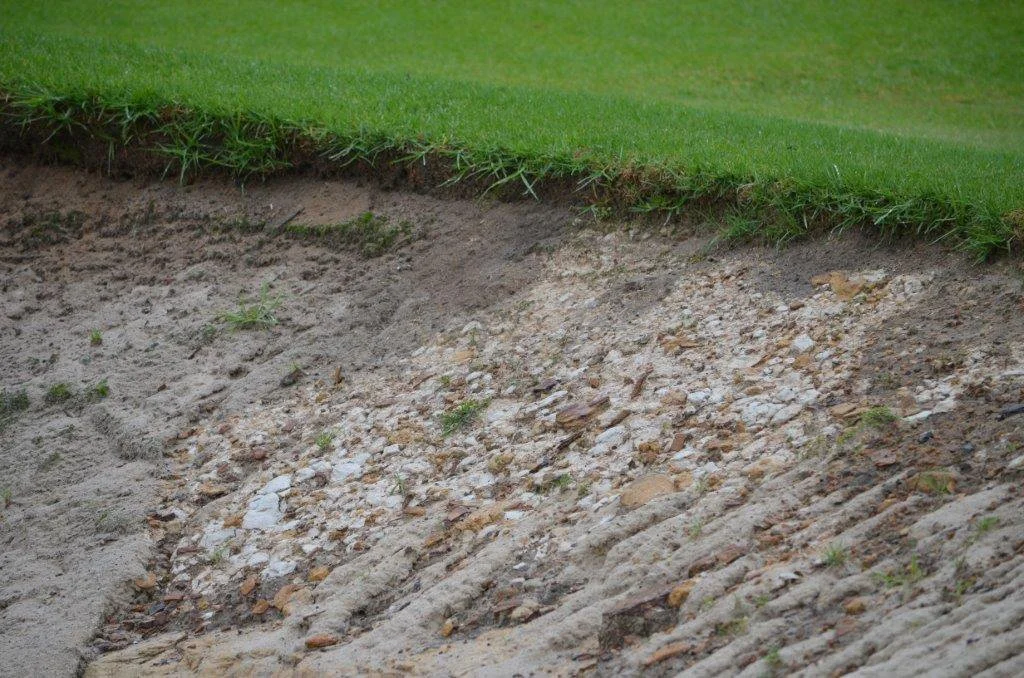

Close-up of an eroded area of soil near the edge of a grassy patch on a golf course.
Cross-section of a grassy field revealing soil layers and root systems.
A close-up view of a golf course bunker with sand and exposed soil with grass on the edges.

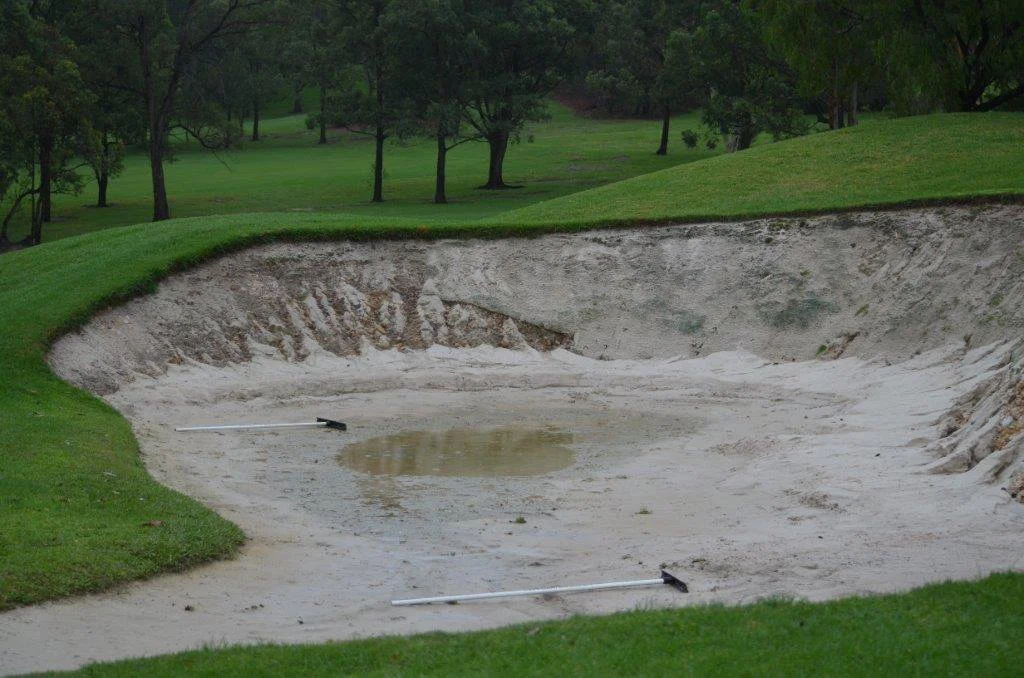

A sand bunker on a golf course with a small water pool and two rake tools inside.
A golf course bunker with sand and grass, surrounded by green fairway and trees.

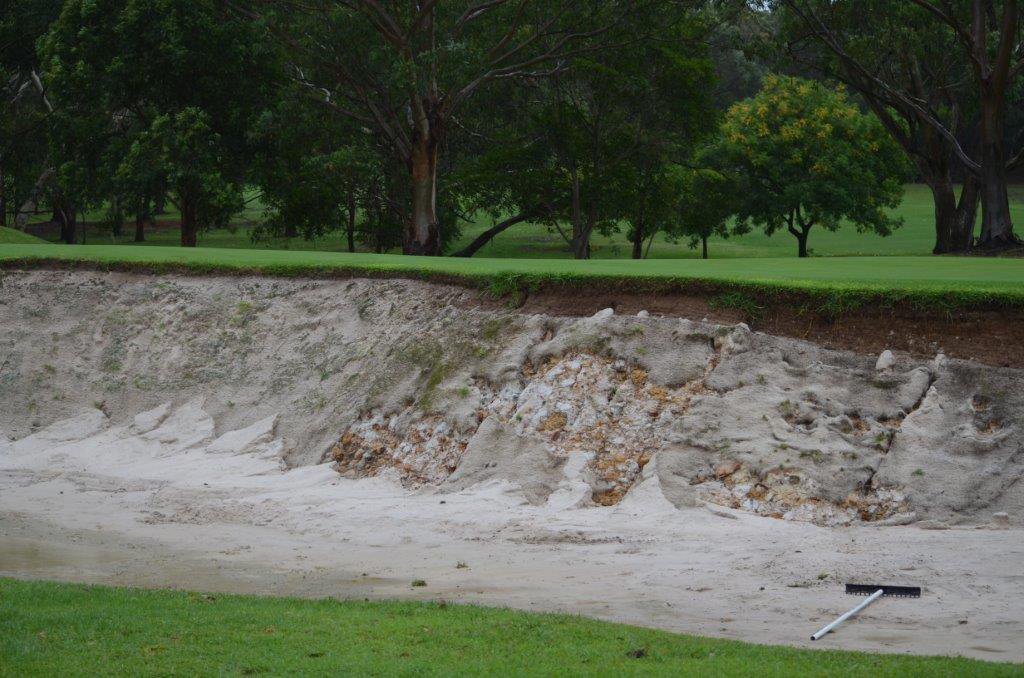

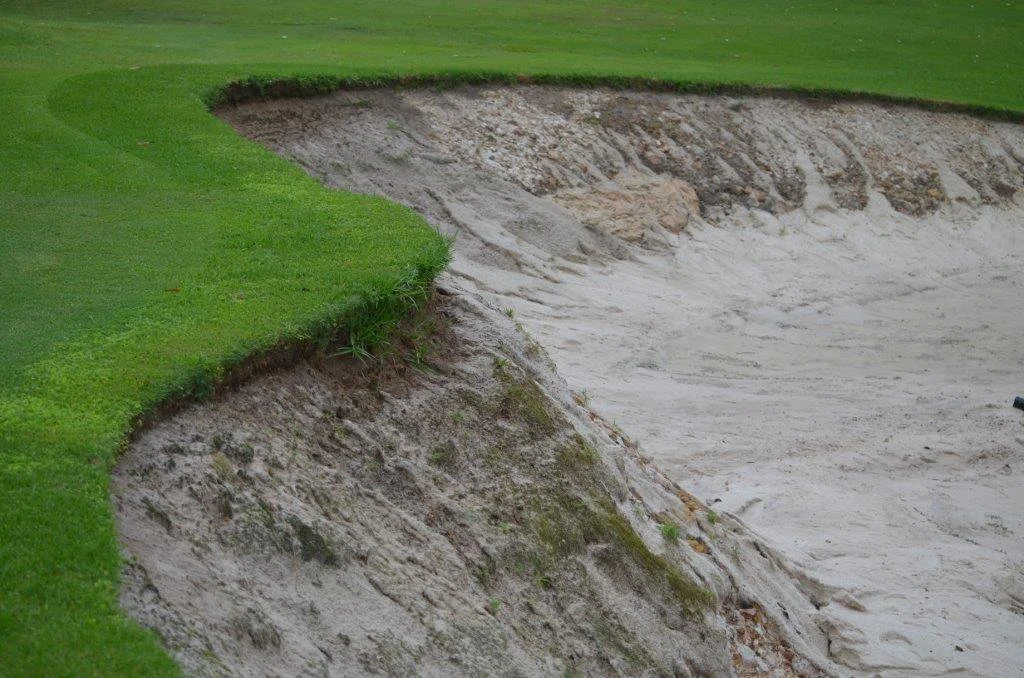

A golf course sand bunker with eroded edges exposing underlying soil and grass

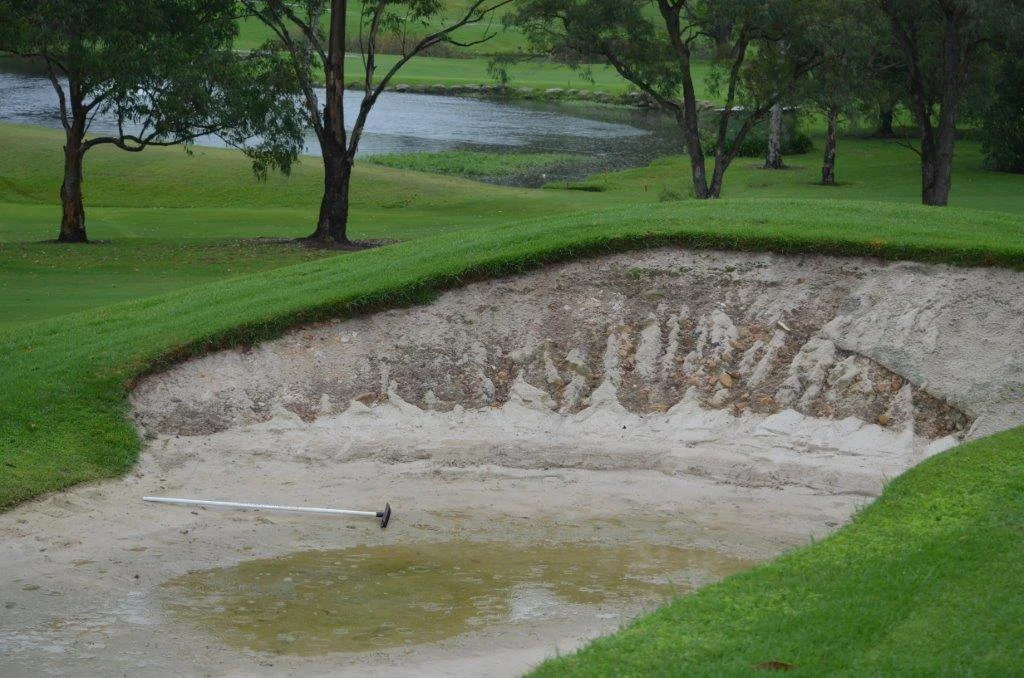

A golf sand trap on a golf course, with a rake lying inside it and some water pooling at the bottom, surrounded by green grass, trees, and a water hazard in the background.
